[Utility] 2-3 Multi-Circle

Multi-Circle?

 ​The ability to collectively create holes in a circular or square plate makes it easier to create multiple circles.

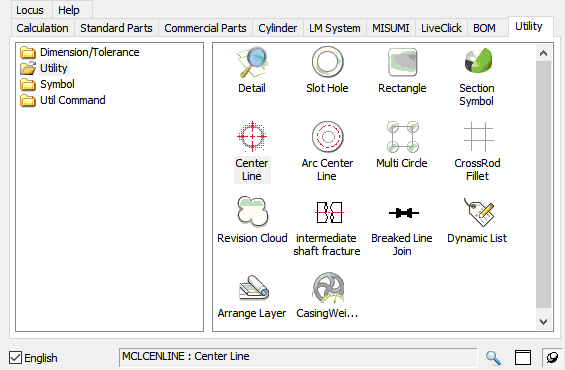

A. Multi-Circle Location

B. How to use



[Utility] 2-2 rectangle

rectangle?

 ​When creating a rectangle, you can freely select the click point and set the chamfer and fillet. It is a function that can draw rectangles easily.

A. rectangle Location

B. How to use

[Utility] 2-1 Slot Hole

Slot Hole?

 Also called a long hole. In 'MechClick,' you can easily create a slot simply by typing in a value for an item.

A. Slot Hole Location

B. How to use

[Utility] 1-3 Arc Center Line

Arc Center Line ?

  You can easily create a centerline simply by selecting a circle or arc.

Layers are the same as layer options.

A. Arc Center Line Location

B. How to use

C. Set Centerline Layer

Layers in the created centerline are controlled by the layer options.



[Utility] 1-2 drawing the center line

drawing the center line?

 When you select a circle or line, the centerline is automatically drawn.

Layers are the same as layer options.

A. Centerline drawing location

B. How to use

C. How to Set Centerline Ratio

1. Command DIMCEN: You can set the extrusion value of the center line.

2. Draw the centerline and change the extrusion ratio (R).

D. Set Centerline Layer

Layers in the created centerline are controlled by the layer options.



[Utility] 1-1 Detail Drawing

Detail Drawing?  ​ With the features, shortcut keys, and options available in 'MechClick,' anyone can better express some of their products. A. Detailed drawing location B. How to use 1. Execute detail. 2. Select area type (circle, rectangle, ellipse, closed area) 3. You can use SHIFT and CTRL to zoom in and out. 4. Right-click in the area selection state. 5. After setting the option, draw.
