[Utility] 2-6 Intermediate Shaft Fracture

Intermediate Shaft Fracture?

 The part that does not need to be drawn is expressed as if it wakes up.

A. Intermediate Shaft Fracture

B. How to use

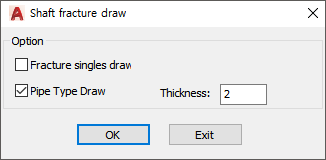

 Immediately after the execution, specify the option and draw as below. (Type "S" to run options)

1) Pipe type

2) Single type

[Utility] 2-5 Revision Cloud

Revision Cloud?

 To make it easier for users to use the cloud features, there are four types of cloud mark and font mode support and arc length settings.

A. Revision Cloud Location

B. How to use

[Utilities] 2-4 Crossing Chamfer

Crossing Chamfer?

 You can easily create closed curves and intersections when lines intersect. You can also split lines into individual objects based on intersections.

A. Crossing Chamfer Location

B. How to use

 After selecting the intersection line, you can set options by pressing the space bar, enter.

You can perform three types of cross-work.

*From left to right

1. Create an intersection

2. Create a closed curve

3. Split line

[Utility] 2-3 Multi-Circle

Multi-Circle?

 ​The ability to collectively create holes in a circular or square plate makes it easier to create multiple circles.

A. Multi-Circle Location

B. How to use



[Utility] 2-2 rectangle

rectangle?

 ​When creating a rectangle, you can freely select the click point and set the chamfer and fillet. It is a function that can draw rectangles easily.

A. rectangle Location

B. How to use

[Utility] 2-1 Slot Hole

Slot Hole?

 Also called a long hole. In 'MechClick,' you can easily create a slot simply by typing in a value for an item.

A. Slot Hole Location

B. How to use

[Utility] 1-3 Arc Center Line

Arc Center Line ?

  You can easily create a centerline simply by selecting a circle or arc.

Layers are the same as layer options.

A. Arc Center Line Location

B. How to use

C. Set Centerline Layer

Layers in the created centerline are controlled by the layer options.



[Utility] 1-2 drawing the center line

drawing the center line?

 When you select a circle or line, the centerline is automatically drawn.

Layers are the same as layer options.

A. Centerline drawing location

B. How to use

C. How to Set Centerline Ratio

1. Command DIMCEN: You can set the extrusion value of the center line.

2. Draw the centerline and change the extrusion ratio (R).

D. Set Centerline Layer

Layers in the created centerline are controlled by the layer options.



[Utility] 1-1 Detail Drawing

Detail Drawing?  ​ With the features, shortcut keys, and options available in 'MechClick,' anyone can better express some of their products. A. Detailed drawing location B. How to use 1. Execute detail. 2. Select area type (circle, rectangle, ellipse, closed area) 3. You can use SHIFT and CTRL to zoom in and out. 4. Right-click in the area selection state. 5. After setting the option, draw.
